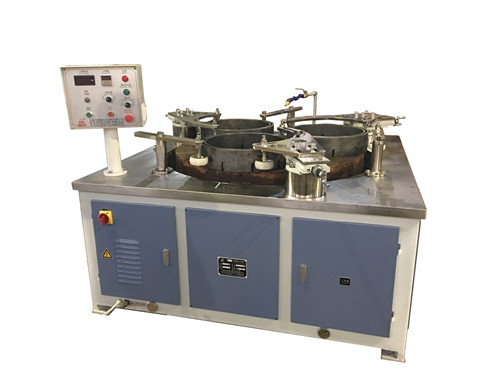

本机床属高精度光学、电子、活塞环、机械另件等平面元件的研磨设备。
采用三个加工工位。可选配三个修正环和一个修正盘, 修正盘用来修正工作台面的平面度。
Mainly used for polishing precision optical glass, electronics, piston rings, mechanical parts, such as flat elements.
This machine has three positions foe processing parts, optional three amendments to the ring and a correction plate, the correction plate flatness correction for countertops.
|
主要技术参数 Main technical specification |
|||
|
磨盘直径 Millstone dia. |
Φ1200mm |
磨盘转速 Millstone rotating speed |
0，10～35RPM |
|
加工范围 Processing scope |
≤Φ450mm |
水盆直径 Tank dia. |
Φ1400mm |
|
单点跳动 Jumpiness of single point |
≤0.02mm |
机床总功率 Total power |
4KW/380V |
|
机床重量 Weight |
约2000kg about2000kg |
外形尺寸 Size |
1710x1710x872(mm) |
|
机床的任何特殊需求都可根据用户的要求设计、制造 All machines can be designed and manufactured as required. |
|||
